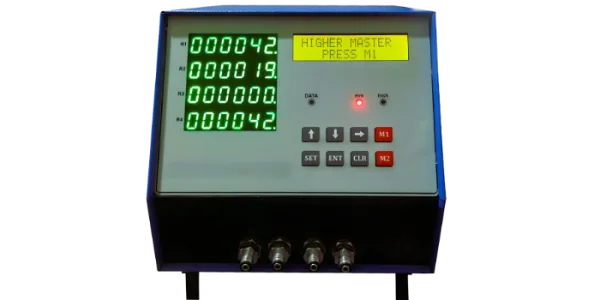

Airsure
Model TG1000
The Airsure series covers two channel and four result, four channel and four result tricolor display units, suitable for gauging applications. A display unit that can deliver excellent and precise performance. The bright tricolor digits and large font on the LCD. The tri-color digit changes color between green, red and yellow depending on the component status- OK, REJECT or REWORK. Below are some of the features 0.56" Tricolor digit display.
FEATURE
- 0.56" Tricolor digit display.
- 16X2 Big font alphanumeric LCD display for settings and configuration.
- RS232 Serial Port.
- Accuracy +/-1% FSD.
- Least Count 0.0005mm, 0.001mm, 0.005mm & 0.010mm.
- Up to 21500 records internal storage with time stamp and program.
- Number for four channel units.
- Relay output (ACCEPT / REWORK / REJECT)
- Metric/Inch measurement unit.
- Built-in air saver feature (Optional)
- Auto correction (Optional)
- Rejection BIN interlock feature (Optional)
- Up to 16 manually selectable program settings.
- Grading option 3 colors / A B C (Optional) lo expansion required
