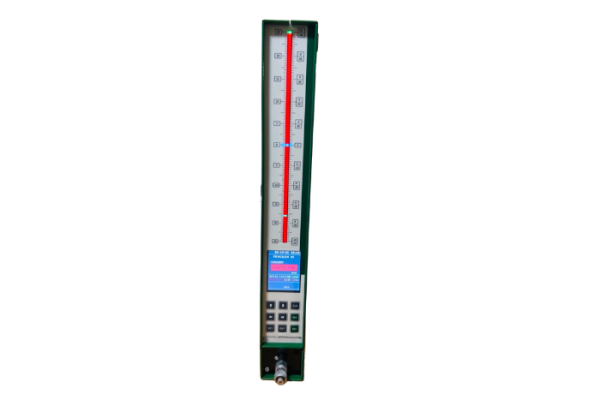

Precision Pro
Model TG7000
The Tricolor bar graph along with the 6 digit 7 segment display is an easy tool for the operate to improve productivity. The user can set it for measurements in comparative mode. The tri-color bar changes color between green, red and yellow depending on the component status- OK, REJECT or REWORK. The tolerance values are superimposed on the bar for operator's assistance. Advanced micro controller-based hardware along with a very simple to understand menu makes it very user friendly.
FEATURE
- Red digits 0.36"
- 2.8" TFT color display.
- Up to 10500 records can be stored internally with timestamps and programs and a second option up to 5 lakh records can be stored with SPC.
- Metric/Inch measurement unit.
- Static/Dynamic reading.
- RS232 Serial Port.
- The tri-color bar changes color between green, red and yellow depending on the component status- ACCEPT / REJECT/REWORK.
- Bar graph ranges from 10,25, 100, 250 and 500.
- Accuracy +/-1% FSD.
- Least Count 0.0005mm, 0.001mm, 0.005mm & 0.010mm.
- Built-in air saver feature (Optional).
- Auto correction (Optional).
- SPC Features: Min, Max, Range, Avg, Cp, Cpk, Pp, PPk, Std Deviation, Mean etc.
